There are many different software available using which you can share your android mobile device screen with your PC or laptop. androidscreencast software Is one of them to control an android device remotely. Using androidscreencast desktop software app, You can mirror your android device's screen In your PC and also you can record the android device's screen activity video In your PC. Let's learn how to Install and use Androidscreencast software to record video of android mobile device's screen activity. We will use It In android app automation using appium.

PREREQUISITES :

1. Java 5 or later version should be Installed In your PC. View JAVA/JDK INSTALLATION steps.
2. Android SDK should be Installed In your PC. View SDK INSTALLATION steps.
3. Android device should be connected with PC and detected using "adb devices" command In command prompt. View ANDROID DEVICE CONNECTION steps.

Download Androidscreencast JNLP

We need androidscreencast.jnlp file to launch androidscreencast software Interface. You can download It from THIS PAGE or use this direct download LINK. It will download androidscreencast.jnlp file. Put It In your desired PC drive location. I have put It at E:\JNLP location.

Add Java Exception Site List

You need to add bellow given URLs In Java Exception Site List.

URLs to add In Java Exception Site List

1. http://code.google.com
2. http://androidscreencast.googlecode.com

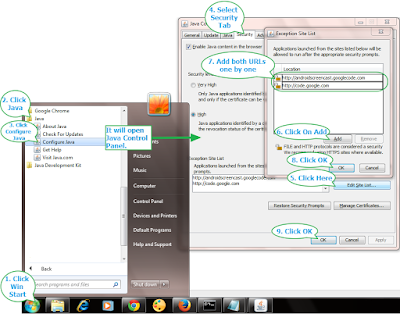

To add above URLs In Java exception site list,

• Click On Windows Start button.
• Click On Java.
• Click On Configure Java. It will open Java Control Panel dialog.
• On Java Control Panel dialog, Select Security tab.
• Click On Edit Site List button on Security tab. It will open Exception Site List dialog.
• Add above URLs one by one In list of Exception Site List dialog by clicking on Add button.
• Click on OK button of Exception Site List dialog.
• Click on OK button of Java Control Panel dialog.

Steps with Image description are as bellow.

Launch Androidscreencast Interface

For launching androidscreencast Interface,

• Open JNLP folder where androidscreencast.jnlp file Is located.
• Press keyboard's CTRL + Shift + Mouse Right Click. It will open right click context menu as shown In bellow given Image.

• Select "Open command window here" from context menu. It will launch command prompt with navigation to current selected JNLP folder.

• Type command javaws androidscreencast.jnlp In command prompt and press keyboard ENTER button. It will show you dialog as bellow on first run.

• Select check box and click on Run button as shown In above Image.
• It will launch Androidscreencast and show your connected device's screen as shown In bellow Image.

Now whatever you do In your mobile screen, It will display In Androidscreencast Interface.

Record Android Screen Video Using Androidscreencast Interface

Now you can record your android phone screen's video using androidscreencast Interface software. To record video,

• Click on Record button as shown In bellow Image. It will open Save file dialog.

• Select your desired location to save recording video file, Provide file name and click on Save button.
• It will start recording your mobile devices screen activities.
• To stop recording, Once again click on Record button. It will stop screen recording.
• It will create .mov file at your selected location.

This way you can mirror your android mobile's screen In PC and record video of screen activities using Androidscreencast software.
